Charger Plus Dash Camera Hardwire Kit

Charger Plus Dash Camera Hardwire Kit

49.99

Hardwire Kit for Dash Cameras

The Charger Plus Hardwire Kit is a battery discharge prevention device with a built in timer. When the Charger Plus detects low level readings from your car battery, it will automatically cut off the device’s power to prevent the car battery from being drained. It is universally compatible with any dash camera.

Quantity:
Add To Cart
Overview

Most Versatile Dash Camera Hardwire Kit

  • Next Generation Professional Hardwire Kit – Most advanced hardwire kit on the market with customizable features and superior battery protection for your vehicle. Compatible with both 12V/24V vehicles.

  • Compatible with any Dash Cam – Universally compatible with any dash cam regardless of brand, model, and type. The cigarette sockets acts a universal port. Simply plug in a USB car charger (sold separately) and plug your USB cable in to power on your dash cam.

  • Programmable Timer Provides 24/7 uninterrupted power. Set a custom amount of time you want to continue recording by setting the built-in timer to 2,4,6,12 or 24 hours. Perfect for dash cams that have a parking mode feature.

  • Customizable Voltage Protection Setting – Connects directly to your fusebox of your car. Automatically cuts-off power to prevent battery drain. Easily set a custom threshold of (11.6/23.6V – to 12.5/24.5V)

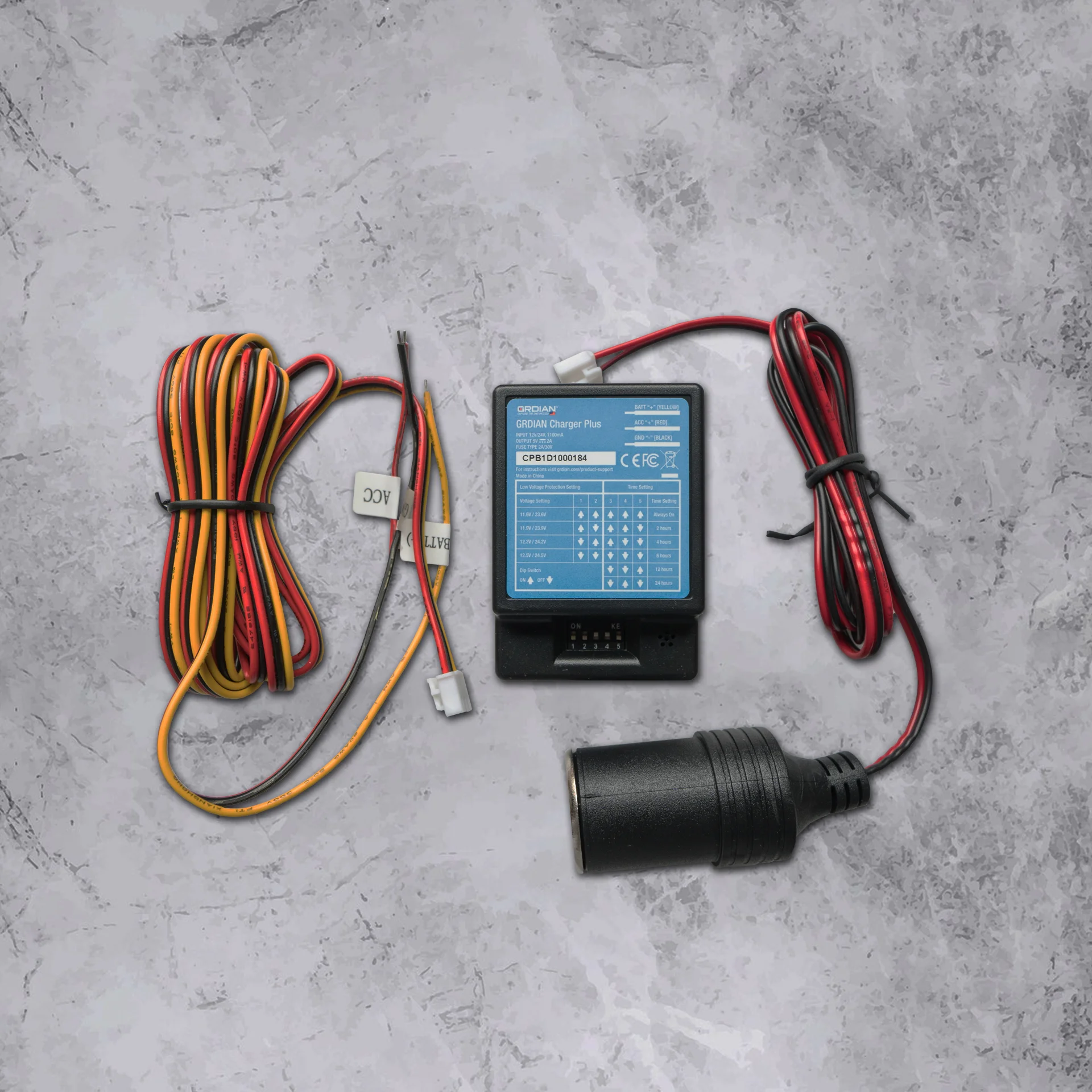

What's in the box

  • Charger Plus Module

  • Cigarette Socket

  • ACC+, BATT+, GND Wires

Not Included

  • x2 Car Fuse

  • x2 Add-a-Fuse

  • USB Cigarette Car Charger

Tools needed for installation

  • Multimeter

  • Crimp Tool

  • x2 Add-a-fuse

  • x2 Car fuse

Specs

GENERAL SPECS

Year Released
2019
Model Name

Charger Plus
Weight
3 OZ.
Dimensions
63.5 x 38 x 25.4mm (2.5 x 1.75 x 1in)

Input Interface
ACC (Red)
GND (Black)
BATT (Yellow)
Cable length (5ft)

Output Interface
Cigarette Socket
Cable length (5ft)

Fuse
NA

Input
12V/24V, 1100mA

TECHNICAL SPECS

Rated Output Voltage
12V/24V

Output Current
Rated Current 1A, Max 2A

Standby Current (Leakage)
NA

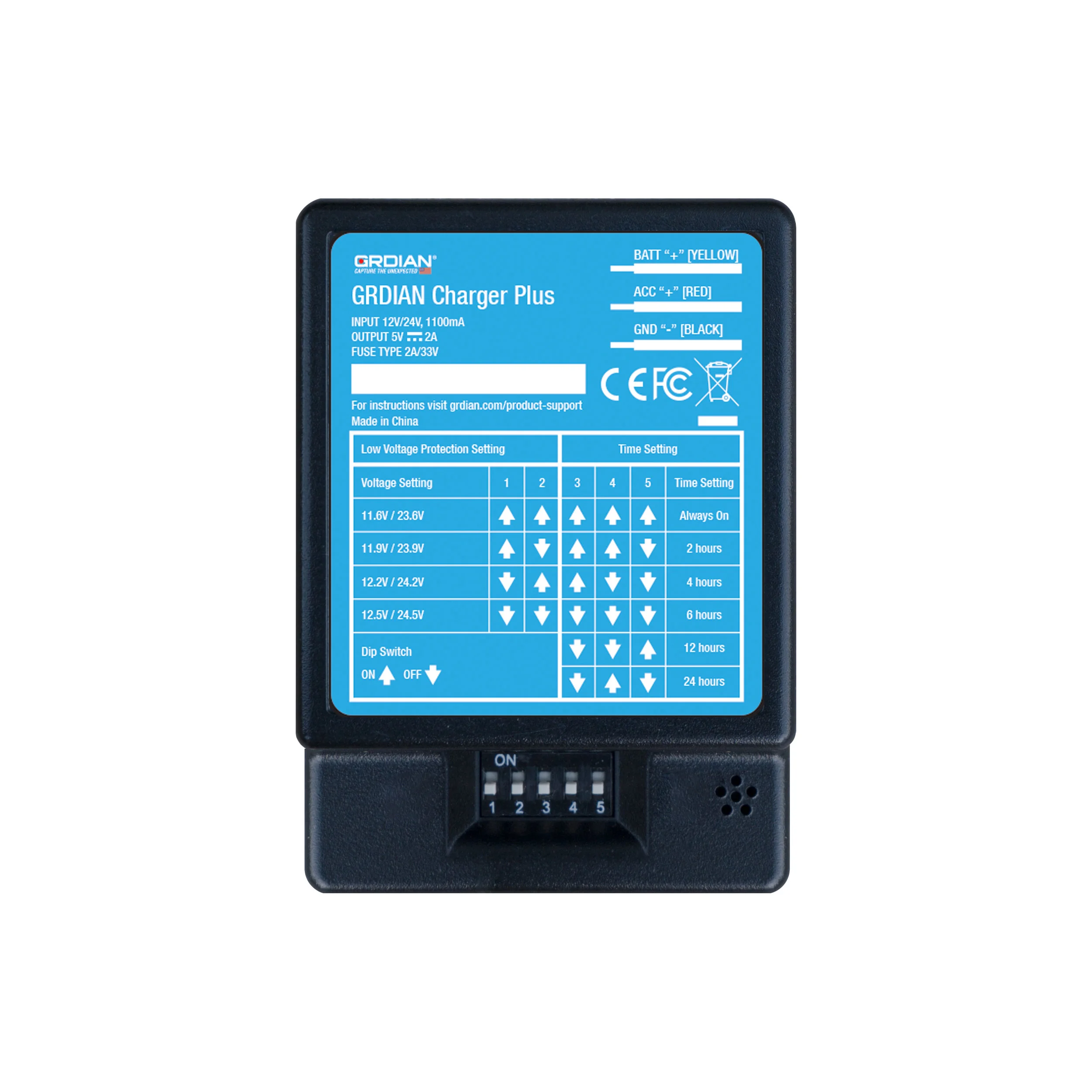

Cutoff Voltage Setting
11.6V - 12.5V (11.6, 11.9, 12.2, 12.5)
23.6V - 24.5V (23.6, 23.9, 24.2, 24.5)

Output Recovery Voltage
NA

Output Cut-off Timer Setting
2 hours, 4 hours, 6 hours, 12 hours, 24 hours, Always On

Operating Temperature
-20˚C to 75˚C (-4°F to 167°F)

Protection
Low Voltage Protection
Timer Protection
Over Current/Surge Protection
